FCI
내압방폭 인디케이터 박스_ Control Station
Explosion-proof Indicator Panel
FCI Series for Hazardous Location
Protection Grade
Ex dⅡB+H2 T6 IP65 for Zone 1·2

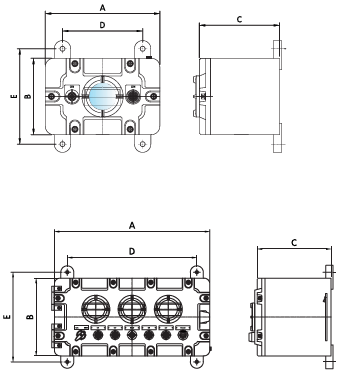

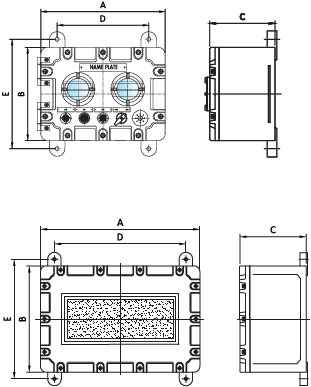

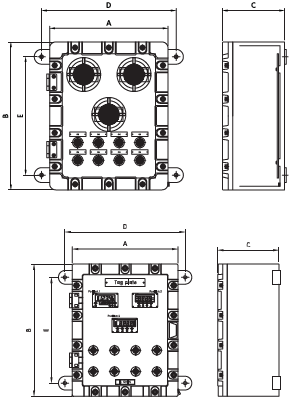

Drawing
Standard Material
- Main Body : Cast Aluminium Alloy
- Cover : Cast Aluminium Alloy
- Indicate Glass : Heat Resistant Hard Glass
- Bolt & Washer : Stainless Steel
- Unit : PB, S/S, EM, PL(Red,Green,Yellow).BZ
Indicator, Frequency
Standard Color
- Munsell no. 7.5BG 6/1.5
If you want other color, contact us please.
Ordering Number
Model No. | Width(A) | Height(B) | Depth(C) | Mount(D) | Mount(E) | IP |
FCI-1* | 300 | 200 | 215 | 210 | 240 | X |
FCI-2** | 400 | 300 | 220 | 295 | 352 | X |
FCI-4**** | 400 | 500 | 230 | 455 | 400 | X |
FCI-600 | 220 | 250 | 160 | 260 | 170 | X |
FCI-3020 | 300 | 200 | 215 | 210 | 250 | IP65 |
FCI-3040 | 300 | 400 | 220 | 346 | 300 | IP65 |
FCI-4030 | 400 | 300 | 220 | 295 | 352 | IP65 |
FCI-5040 | 400 | 500 | 230 | 455 | 400 | IP65 |
FCI-5040D | 500 | 400 | 230 | 400 | 450 | IP65 |
FCI-6030 | 600 | 300 | 285 | 500 | 346 | IP65 |
FCI-6040 | 600 | 400 | 230 | 495 | 450 | IP65 |
