IS-S*-5070 (IECEx)
CONTROL STATION_방폭 Local Switch and Transmitter Box

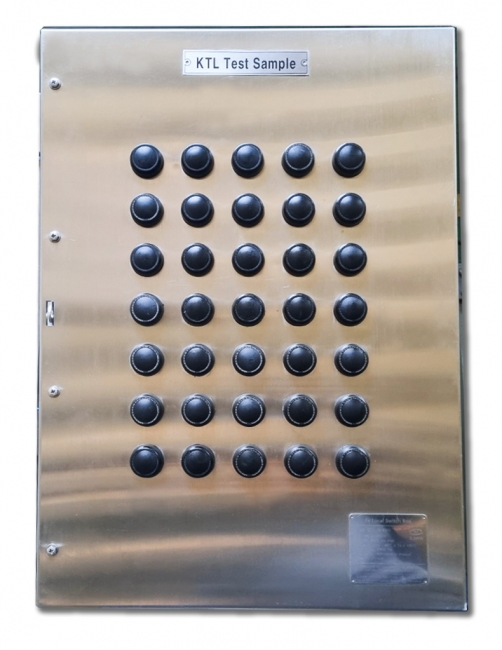

Explosion-Proof Local Switch and Transmitter Box
IS-S*-5070 Series for Hazardous Location.
Protection Grade
IECEx : Ex tb (ia Da) IIIC T80℃ Db IP66
Specification
● Cable Entry : Order
● Thread : NPT / Metric
● Unit : Push Button / Selector Switch / Emergency Switch / Pilot Lamp
◎ Standard Material
● Main Body : Stainless Steel
● Bolt & Washer : Stainless Steel
Technical Data
● IS-SLSB-5070 (Local Switch Box) :
[1] IECEx : Ex tb IIIC T80℃ Db IP66
[2] Rated : 690V 5A Max.
[3] Installation Method : Wall Mounting Type
● IS-STB-5070 (Transmitter Box) :
[1] IECEx : Ex tb [ia Da] IIIC T80℃ IP66
[2] Rated : DC28V Max.
[3] Installation Method : Wall Mounting Type
● Tamb
IS-SLSB-5070 : -40℃≤ Ta ≤+60℃
IS-STB-5070 : -20℃≤ Ta ≤ +56℃
Drawing
Ordering Number
Model No. |
Width(A) |
Height(B) |
Depth(C) |
Mount(D) |
Mount(E) |
Bakelite Plate |
IS-SLSB-5070 |
500 |
700 |
200 |
555 |
600 |
420 x 620 |
IS-STB-5070 |
500 |
700 |
200 |
555 |
600 |
420 x 620 |
