Explosion-proof Cable Gland

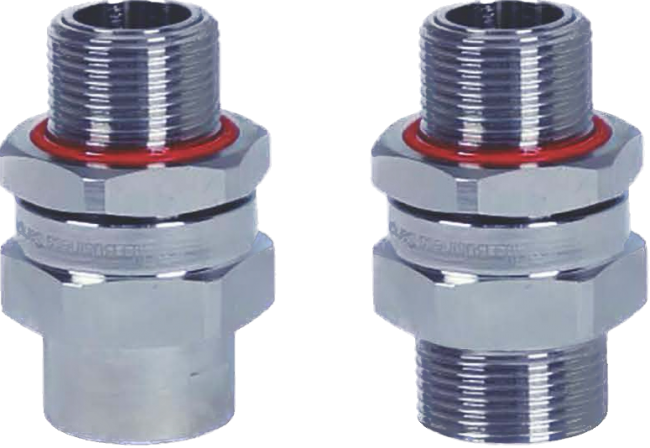

ISCG-CCG-** Series for Hazardous Location (Cable Type)
Protection Grade
Ex d IIC / Ex e IIC / Ex nR IIC / Ex tD A20 IP66
Specification
● Material
Standard : Brass (Ni-plated)
Option : Stainless Steel 304, 316, Carbon Steel
● Thread : PF / NPT / Metric
● Compound :
Selpod-LB : Liquid epoxy
Selpod-PB : Putty epoxy
●Tamb : -60℃ ≤ Ta ≤ +100℃

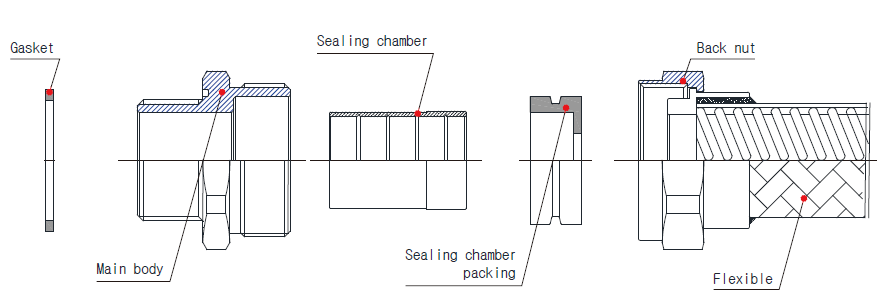

Drawing

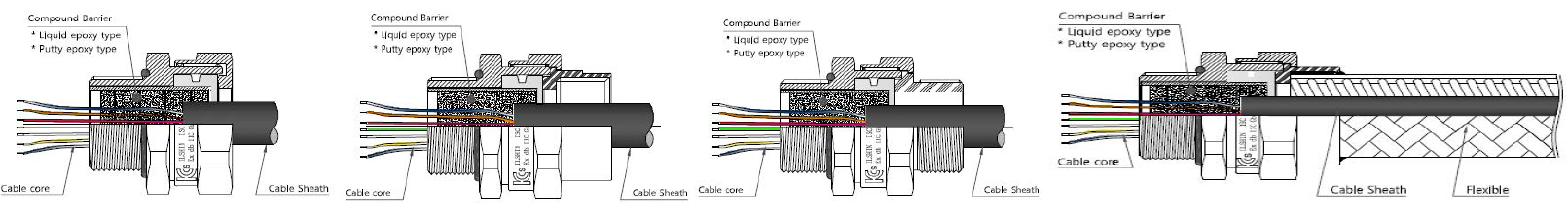

Type-E (Male x End) Type-F (Male x Female) Type-M (Male x Male) Type-X (Male x Flexible (M or F)
Dimmension (mm)
Thread Type |
Max OverCores |
Chamber Packing Inner Ø Size |
Maximum Number of Cores |
Amount of Compound Required |
||||||||
PF(G) |
NPT |
METRIC |
Ø | Standard |
Special |
Selpod-LB |
Selpod-PB |
|||||
3/8" |
3/8" |
M16 |
Ø6 |
Ø4 (Ø4~7) |
Ø2.5 (Ø2.5~7) |
4 |
2.4㎖ |
6㎜ |
||||
1/2" |
1/2" |
M20 |
Ø9 |
Ø7 (Ø7~10) |
Ø2.5 (Ø2.5~10) |
8 |
4.8㎖ |
12㎜ |
||||
3/4" |
3/4" |
M25 |
Ø14 |
Ø12 (Ø12~15) |
Ø4 (Ø4~15) |
14 |
9.2㎖ |
23㎜ |
||||
1" |
1" |
M32 |
Ø18 |
Ø16 (Ø16~19) |
Ø6 (Ø6~19) |
22 |
17.6㎖ |
44㎜ |
||||
1-1/4" |
1-1/4" |
M40 |
Ø24 |
Ø22 (Ø22~25) |
Ø10 (Ø10~25) |
30 |
29.6㎖ |
74㎜ |
||||
1-1/2" |
1-1/2" |
M50 |
Ø31 |
Ø29 (Ø29~32) |
Ø10 (Ø10~32) |
40 |
42.4㎖ |
106㎜ |
||||
2" |
2" |
M63 |
Ø39 |
Ø37 (Ø37~40) |
Ø25 (Ø25~40) |
38 |
78.8㎖ |
1통+17㎜ |
||||
