ISTLS-*
Explosion-proof and Dust Explosion-proof Tower Lamp(3 color) LED Lighting Fixture
ISTLS-* Series for Hazardous Location
Protection Grade
Ex d ⅡC T6 IP65 for Zone 1·2
Ex tD A21 IP65 T85℃ Zone 21·22

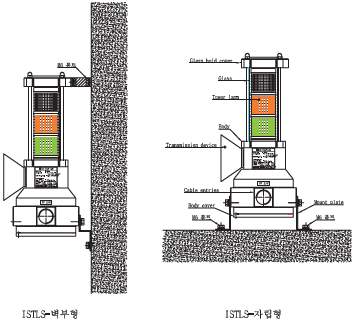

Drawing
Standard Material
- Main Body : Aluminium
- Cover : Aluminium
- Glass Hold Cover : Aluminium
- Glass : Heat Resistant Hard Glass
- Guard : Stainless Steel
- Sound Level : 70dB
Ordering Number
Model No. | Use | Lamp No. | Rating | Remark |
ISTLS-A | Lighting+Buzzer | 3 | AC/DC12/24V | Buzzer type |
ISTLS-B | Lighting+Blink | 3 | AC/DC12/24V | |
ISTLS-C | Lighting | 3 | AC/DC12/24V | |
ISTLS-D | Lighting | 3 | AC110/220V | |
ISTLS-E | Lighting+Buzzer | 2 | AC110/220V | |
ISTLS-F | Lighting+Blink | 2 | AC110/220V | |
ISTLS-G | Lighting+Blink+Buzzer | 2 | AC/DC12/24V | |
ISTLS-H | Lighting+Blink | 1 | AC110/220V |
