IS-LEDF-N*(120W/150W/180W/200W)

Explosion-proof and Dust Explosion-proof square floodlight LED Lighting Fixture
IS-LEDF-N* Series for Hazardous Location


Protection Grade
Ex nRⅡC T6 IP66
Ex tD A21 IP66 T85℃ Zone 2

List

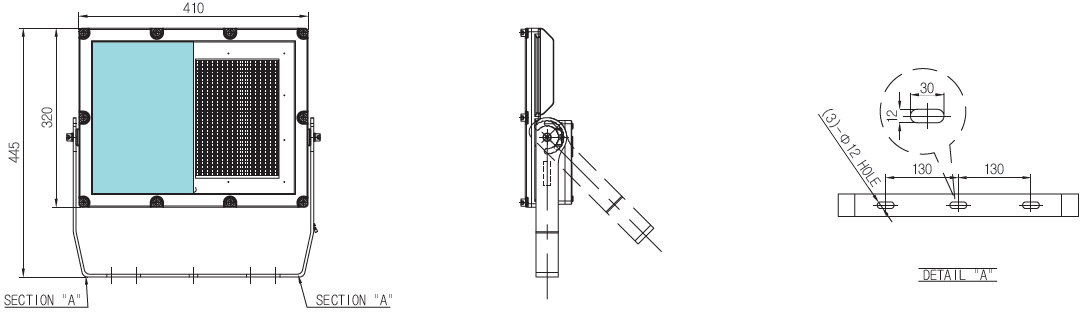

Drawing




Standard Material

- Main Body : Aluminium Alloy
- Holder : Aluminium Alloy
- Glass : Heat Resistant Hard Glass
- Bolt & Washer : Stainless Steel
- Support : Stainless Steel

◎ Standard Color
- Munsell no. Dark Gray
   If you want other color, contact us please

Technical Data

- Rated Voltage : AC 200~480V, DC 48V
- Rated Wattage : 120W / 150W / 180W / 200W
- Rated Frequency : 50Hz/60Hz
- Entry Size : 3/4"(22C) x 2
- Demension : 410(W) x 320(H)

◎ Ordering Number


 Lamp

Watt

Ceiling Type

Pendant Type

LED

120W

IS-LEDF-N120W

11.3kg

LED

150W

IS-LEDF-N150W

11.3kg

LED

180W

IS-LEDF-N180W

11.3kg

LED

200W

IS-LEDF-N200W

11.3kg
