TB

Explosion-proof ⅡC Junction Box
TB Series for Hazardous Location

Protection Grade
Ex d ⅡC T6 IP65 for Zone 1·2

List

Drawing





Speciflcation

- Main Body : Cast Aluminium Alloy
- Cover : Cast Aluminium Alloy
- Bolt & Nut : Stainless Steel
- Cover to rotate the structure to the way the threads

Standard Color

- Mnusell no. 7.5BG 6/1.5
   If you want other color, contact us please

Dimension(mm)

Model No.

Width(A)

Height(B)

Depth(C)

Mount(D)

Mount(E)

Bakelite Plate

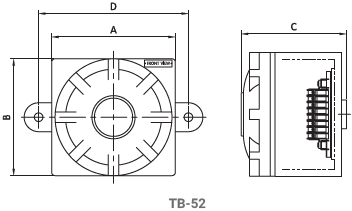

TB-52

180

165

150

218

-

Ø 130

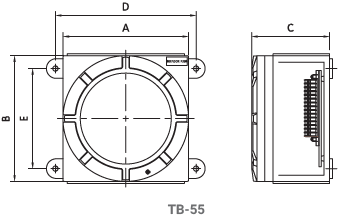

TB-55

300

300

185

355

243

220 x 220

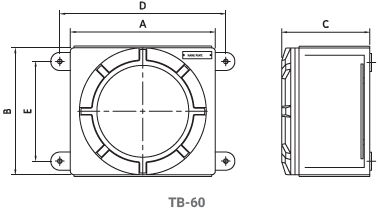

TB-60

400

350

250

458

275

300 x 265

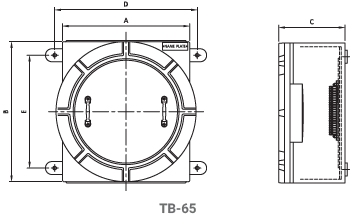

TB-65

500

550

260

558

445

420 x 420
