IS-EPRP-**
방폭 GRP RECEPTACLE & PLUG
Explosion-proof and Dust Explosion-proof GRP Receptacle & Plug
IS-EPRP Series for Hazardous Location
Protection Grade
Ex deⅡC T6 IP66 for Zone 1, 2
Ex tD A21 IP66 T80℃ for Zone 21, 22

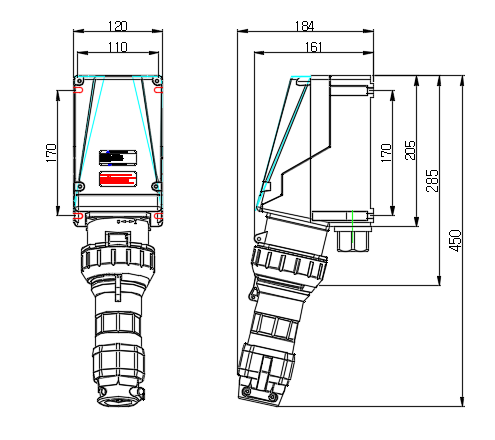

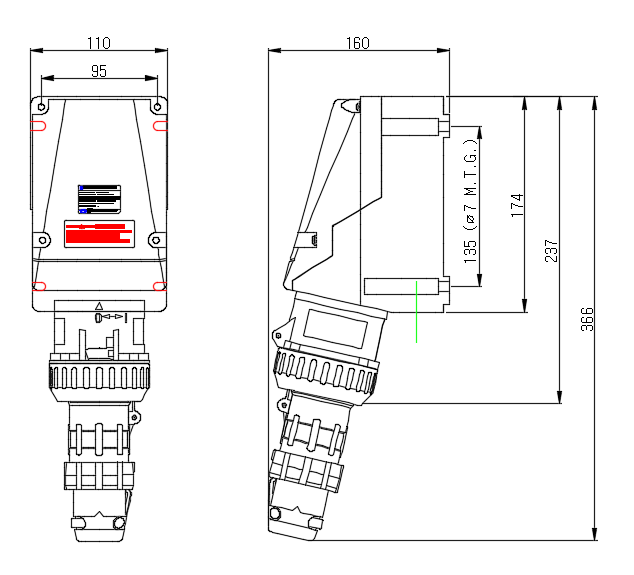

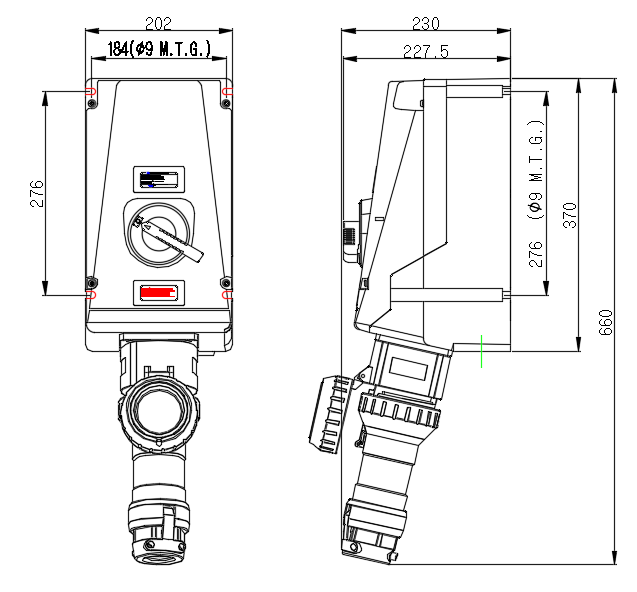

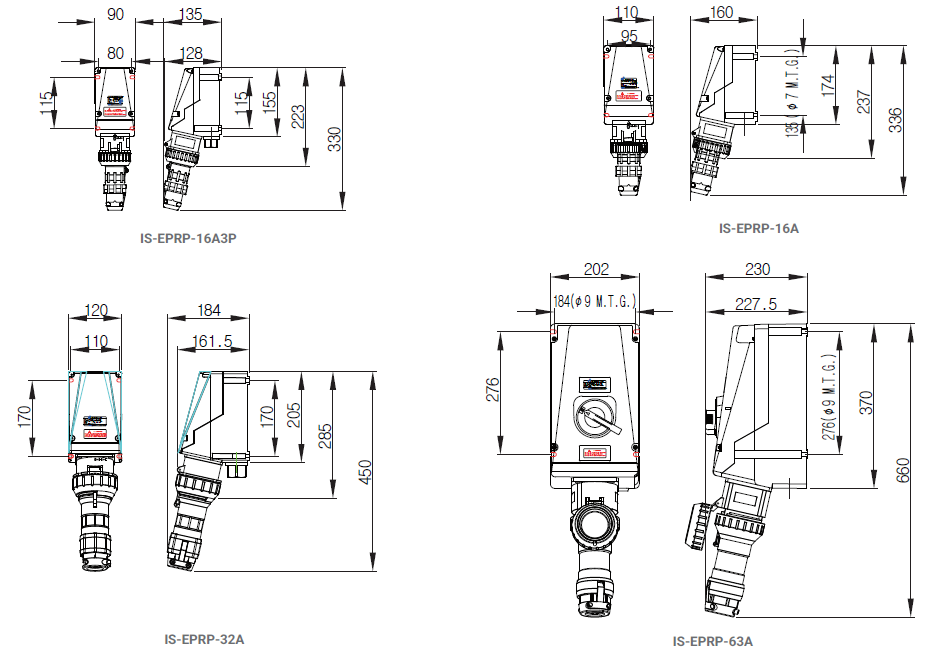

Drawing
IS-EPRP-16A3P IS-EPRP-16A IS-EPRP-32A IS-EPRP-63A
Speciflcation
- Main Body : Engineering plastic (GRP)
- Plug Casing : Engineering plastic (GRP)
- Bolt & Washer : Stainless Steel
- Ambient temperature : -30’C up to +60°C
- Rating : 20A - Max 250A
20A(4P), 32A, 63A - Max 690A
Ordering Number
Model No. |
Rated Current |
Weight (Kg) |
Remark |
|
IS-EPRP-16A3P |
2P+1E |
Max250V / 20A |
1.3 |
de, tD |
IS-EPRP-16A |
3P+1E |
Max690V / 20A |
1.9 |
de, tD |
IS-EPRP-32A |
3P+1E, 4P+1E |
Max690V / 32A |
3.2 |
de, tD |
IS-EPRP-63A |
3P+1E, 4P+1E |
Max690V / 63A |
9.5 |
de, tD |
