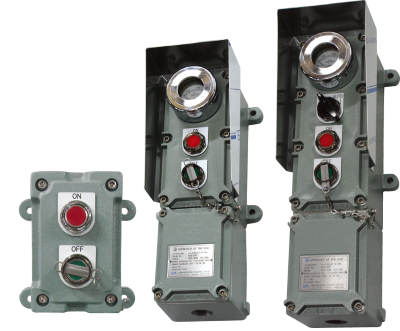

FCS (CONTROL STATION)
Explosion-proof and Dust Explosion-proof Control StationFCS Series for Hazardous Location
Protection Grade
Ex dⅡB T6 for Zone 1·2
Ex d ⅡB+H2 T6 IP65 for Zone 1·2
Ex tD A21 IP65 T85° Zone 21·22

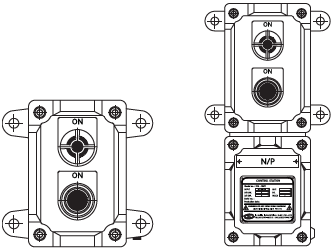

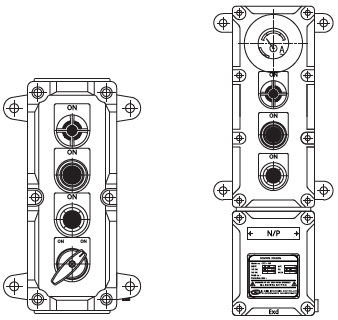

Drawing
Specification
- Main Body : Cast Aluminium Alloy
- Terminal Box : Cast Aluminium Alloy
- Bolt & Washer : Stainless Steel
- Unit : Push Button, Selector Switch
Emergency Switch, Pilot Lamp (Color : Red, Green, Yellow)
Buzzer, Meter (Ampere, Volt, RPM)
Indicator, Frequency
Ordering Number
Model No. | Width(A) | Height(B) | Depth(C) | Mount(D) | Mount(E) | Certificate |
FCS-200 | 100 | 150 | 115 | 130 | 105 | d |
FCS-200T | 110 | 310 | 117 | 135 | 120 | d,tD |
FCS-300 | 100 | 220 | 115 | 134 | 170 | d |
FCS-300T | 110 | 365 | 117 | 135 | 175 | d,tD |
FCS-400 | 100 | 257 | 123 | 130 | 200 | d |
FCS-400T | 110 | 415 | 117 | 135 | 225 | d,tD |
FCS-500T | 150 | 467 | 130 | 187 | 236 | d,tD |
