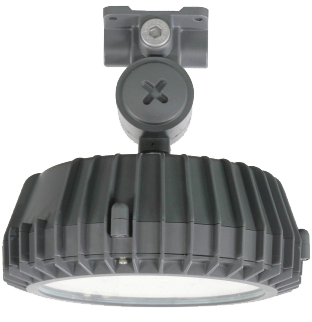

EGHL-LED**(55W/80W/100W/30W Battery)
Explosion-proof and Dust Explosion-proof LED Lighting Fixture
EGHL-LED***W Series for Hazardous Location
30W(W/Battery 60 min)
Protection Grade
Ex nR ⅡT6 IP66 for Zone 2
Ex tD A21 IP66 T85℃ Zone 21·22

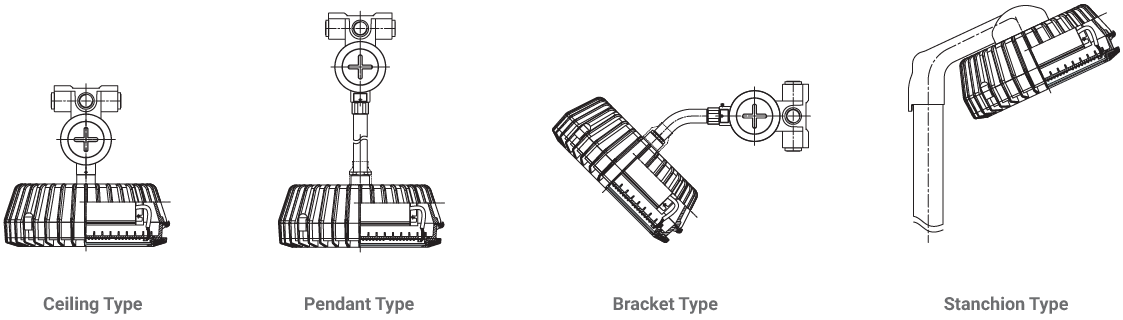

Drawing
Standard Material
- Main Body : Die-Cast Aluminium Alloy
- Holder : Die-Cast Aluminium Alloy
- Glass : Heat Resistant Hard Glass
- Mounting Box : Die-Cast Aluminium Alloy
- Bolt & Washer : Stainless Steel
◎ Standard Color
- Munsell no. 7.5BG 6/1.5
If you want other color, contact us please.
◎ Technical Data
- Rated Voltage : AC100~240V BELOW
- Rated Wattage: 30W / 55W / 80W / 100W / 30W(W/Battery 60min)
- Rated Frequency : 50Hz/60Hz
- Entry Size : 3/4"(22C), 1"(28C)
Weight
Mounting Typed | Model No. | Weight |
Ceiling | EGHL-LED***W-01 | 6.8kg |
Pendeant | EGHL-LED***W-02 | 7.5kg |
Bracket | EGHL-LED***W-03 | 7.3kg |
Stanchion | EGHL-LED***W-04 |
|
◎ Mounting Box Hole Size
Appearance | Hole space |
124 x 124 | 100 x 100 |
◎ Ordering Number
Lamp | Watt | Ceiling Type | Pendant Type | Bracket Type | Stanchion Type |
LED | 55W | EGHL-LED55W-01 | EGHL-LED55W-02 | EGHL-LED55W-03 | EGHL-LED55W-04 |
LED | 80W | EGHL-LED80W-01 | EGHL-LED80W-02 | EGHL-LED80W-03 | EGHL-LED80W-04 |
LED | 100W | EGHL-LED100W-01 | EGHL-LED100W-02 | EGHL-LED100W-03 | EGHL-LED100W-04 |
LED | 30W | EGHL-LED30W-01 Battery | EGHL-LED30W-02 Battery | EGHL-LED30W-03 Battery | EGHL-LED30W-04 Battery |
