CSLP

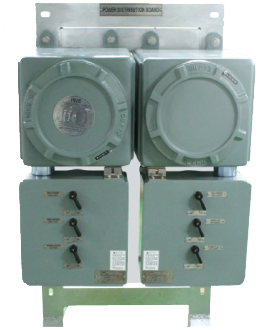

Explosion-proof Power Distribution Panel
CSLP Series for Hazardous Location


Protection Grade
Ex dⅡC T6 for Zone 1·2

List

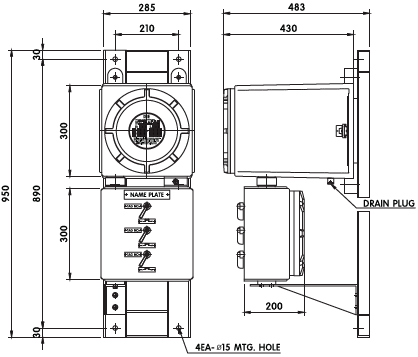

Drawing





Specification

- Main Body : Cast Aluminium Alloy
- Cover : Cast Aluminium Alloy
- Terminal Box : Cast Aluminium Alloy
- Stanchion : Steel
- Rotate the bottom of the maintenance work.
- Cover to rotate the structure to the way the threads

Standard Color

- Munsell no. 7.5BG 6/1.5
   If you want other color, contact us please.

Ordering Number

 Model No.

Width(A)

Height(B)

Depth(C)

Mount(D)

Mount(E)

CSLP 3030

300

300+300

430

200

890

CSLP 3065

300

300+671

430

200

1230
