IS-LEDF-D*(100W/120W/150W/180W/200W)
Explosion-proof and Dust Explosion-proof circular floodlights LED Lighting Fixture
IS-LEDF-D* Series for Hazardous Location
IS-LEDF-D* Series for Hazardous Location
Protection Grade
Ex dⅡC T5 IP66
Ex tD A21 T95℃ IP66 Zone 1·2

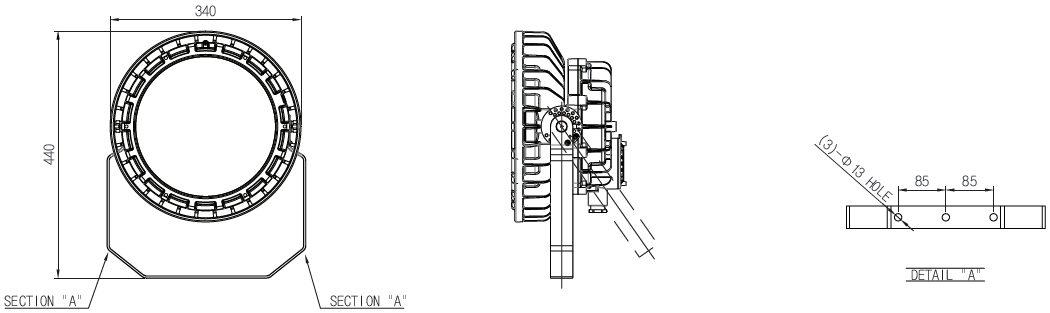

Drawing
Standard Material
- Main Body : Die-Cast Aluminium Alloy
- Holder : Aluminium Alloy
- Glass : Heat Resistant Hard Glass
- Bolt & Washer : Stainless Steel
- Support : Stainless Steel
◎ Standard Color
- Munsell no. 7.5BG 6/1.5
If you want other color, contact us please
Technical Data
- Rated Voltage : AC 90~270V BELOW
- Rated Wattage : 100W / 120W / 150W / 180W / 200W
- Rated Frequency : 47Hz~63Hz
- Entry Size : 1/2"(16C), 3/4"(22C), 1"(28C)
- Demension : 340(Ф) x 204(H)
◎ Ordering Number
Lamp | Watt | Ceiling Type | Pendant Type |
LED | 100W | IS-LEDF-D100W | 10.4kg |
LED | 120W | IS-LEDF-D120W | 10.4kg |
LED | 150W | IS-LEDF-D150W | 10.4kg |
LED | 180W | IS-LEDF-D180W | 10.4kg |
LED | 200W | IS-LEDF-D200W | 10.4kg |
LED | 200W (LENS) | IS-LEDF-D200WR | 10.4kg |
