IS-FTD-*
Explosion-proof Heat Detector
IS-FTD-* for Hazardous Location
Protection Grade
Ex d ⅡC T6 for Zone 1·2
Ex tD A21 IP66 T80℃ Zone 21·22

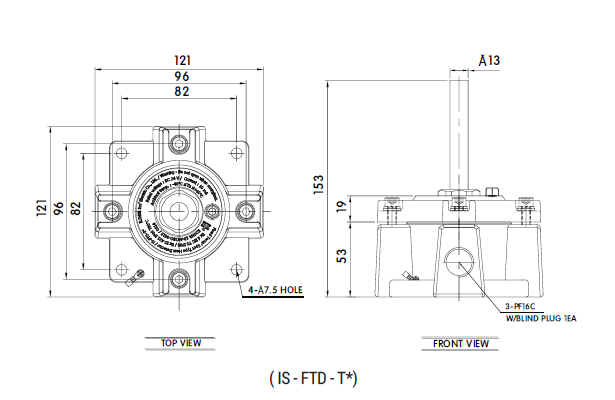

Drawing
Standard Material
- Main Body : Cast Aluminium Alloy
- Cone : AL Sheet
- Bolt : Stainless Steel
- Bracket : Steel
- Gasket : Silicone Rubber
◎ Standard Color
- Munsell no. 7.5BG 6/1.5
If you want other color, contact us please
Weight
- 1.2kg
◎ Technical Data
- Voltage : 24V DC ±20%
- electric current : 10mA
Ordering Number
Type | Model | Rated | Nominal operating temperature | Classification | Temperature sensing function |
IS-FTD-* | IS-FTD-60/T60 | 24V DC ±20% | 60 | IC Chip | |
IS-FTD-70/T70 | 70 | ||||
IS-FTD-90/T90 | 90 | ||||
IS-FTD-110/T110 | 110 | ||||
IS-FTD-120/T120 | 120 | ||||
IS-FTD-130/T130 | 130 |
