FETLE(Small-4.5W, Midium-6.5W)

Explosion-proof  and Dust Explosion-proof Exit Lighting Fixture
FETLE Series for Hazardous Location

Protection Grade
Ex d ⅡB+H2 T6 for Zone 1·2
Ex tD A21 IP65 T80℃ Zone 21·22

List

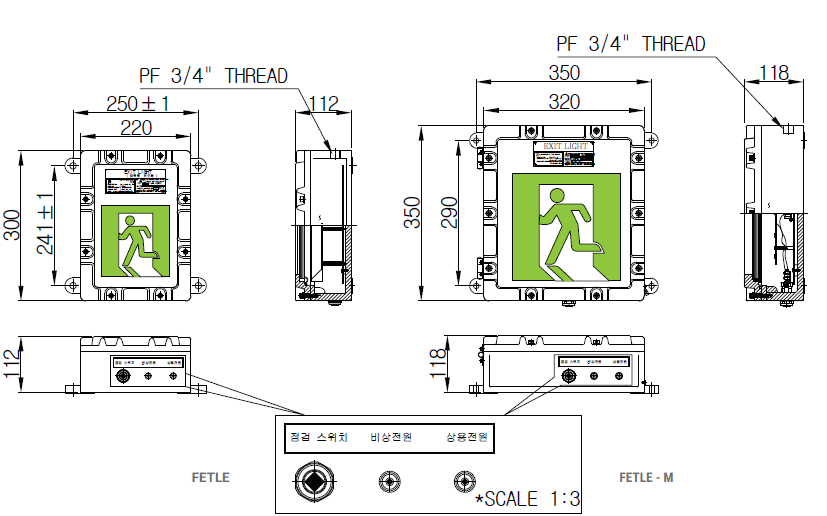

Drawing

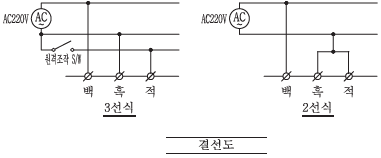

Diagram




Standard Material

- Main Body : Cast  Aluminium Alloy
- Cover : Cast  Aluminium Alloy
- Front Glass : Heat Resistant Hard Glass

◎ Standard Color
- Munsell no. 7.5BG 6/1.5
   If you want other color, contact us please.



Technical Data

- Rated Voltage : AC 250V Below
- Lamp : LED
- Rated Frequency : 50Hz/60Hz
- Effective Lighting Time : 60minutes
   (Battery Charging Operation)
- power consumption : small size 4.5W
                                 middle-size 6.5W

◎ Weight
- small size 9.4kg
- middle-size 15.1kg

Download
